Explore our solutions by clicking on the brand below:
Industrial Switches
Antaira offers a variety of industrial Ethernet switches that can perform efficiently in adverse weather conditions and environments. Set up a reliable Ethernet infrastructure that features extended temperature tolerances and enclosures designed for the roughest environments. Markets include automation processes, smart transportation systems, security operations, and power/utility plants.

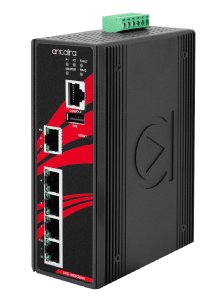

Antaira’s industrial unmanaged Ethernet switches are basic plug-and-play industrial switches with no remote configuration, management, or monitoring options. Antaira offers a full line of industrial unmanaged switches that support Fast Ethernet, Gigabit, and 10G with copper and fibre connectors.
Industrial managed Ethernet switches enable network managers to remotely access a wide range of capabilities to configure, manage and monitor a Local Area Network. If you require the ability to configure mission-critical data’s priority on your LAN, monitor LAN traffic, build in a redundancy failsafe and control who can access the network and make changes, you’ll need a managed Ethernet.
IP30 Industrial Ethernet Extender

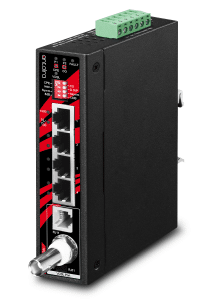

The IVC-4011-T-V2 is an Industrial Ethernet Extender that has a switching architecture with 4 RJ-45 10/100/1000 Mbps Ethernet ports and one asymmetric or symmetric Ethernet over VDSL port – the VDSL port can be RJ-11 or BNC connector. The embedded BNC or RJ-11 port allows customers to continue using their existing network with the current coaxial cable or telephone wire without the need for rewiring.
The IVC-4011-T-V2 provides a high level of immunity to electromagnetic interference and heavy electrical surges typical of environments like plant floors or in curbside traffic control cabinets. The IVC-4011-T-V2 is designed with an IP-30 metal case with DIN Rail or Wall Mount support. It also can operate under extreme ambient weather temperatures ranging from -40° to 75° C.
Users can easily re-deploy a new local Internet in any residential area, Public Service Facility, Campus or Hospitality Environment by applying the IVC-4011-T-V2 on the original network structure.
Industrial Wireless Solutions
Antaira offers a variety of industrial IEEE 802.11 a/b/g/n wireless AP/bridge/client products that deliver reliable performance across harsh weather and environmental conditions. These devices are resistant to electromagnetic disturbances, periods of voltage instability, extreme temperature fluctuations, as well as intense shocks and vibrations. Markets such as oil/gas, power/utility, transportation, security, and automation utilize Antaira’s products for their unmatched reliability and performance. Advanced security features suitable for high-speed performance demanding applications are available.

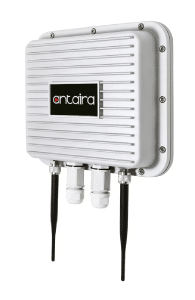

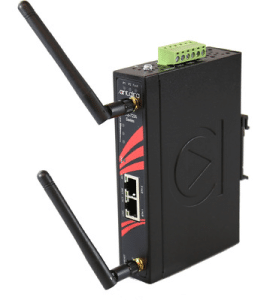

Industrial Wireless Routers
Allows users to implement encrypted VPN tunnels and other basic WiFi routing capabilities for remote harsh environment applications. Industrial WiFi routers provide vital networking capabilities for your WLAN, ranging from affordable entry-level routers to high-end, dual-radio access points/clients/bridges/repeaters with router capabilities. With industrial wireless routers from Antaira, you can build a reliable, high-quality WLAN in virtually any environmental or industrial condition.

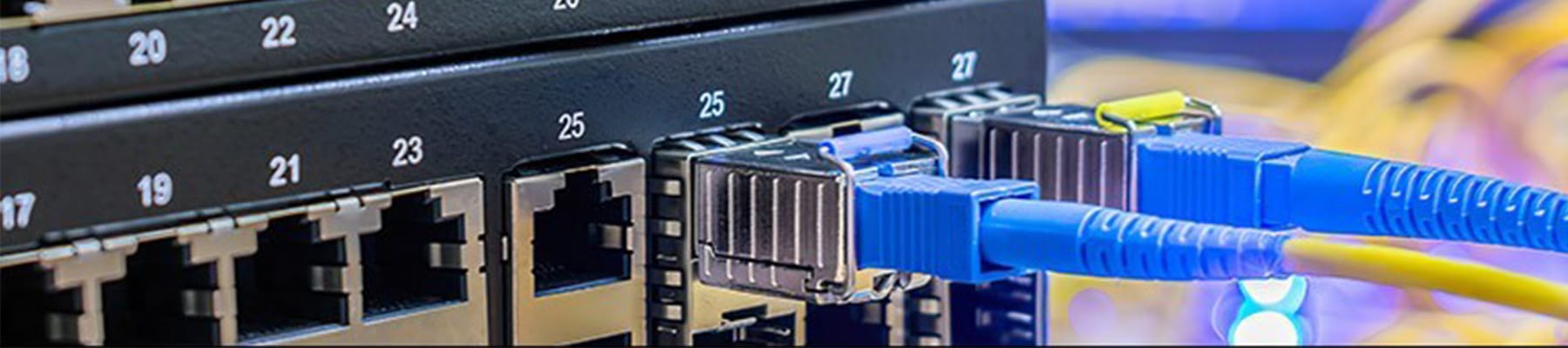

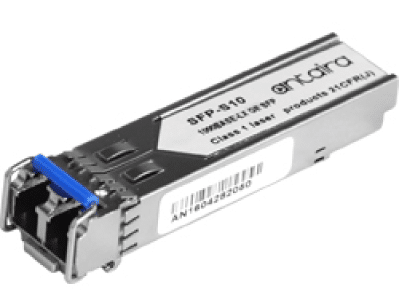

SFP Modules
Antaira offers a variety of small form-factor pluggable transceivers (SFP modules) that reliably connect fibre and optic cables in adverse industrial and environmental conditions. Use interchangeable hot-swappable and protocol-independent SFP modules with copper media, multimode optical fibre, as well as single-mode optical fibre. Ideal for any industrial network that supports several data rates and fibre types, you can rely on Antaira’s SFP transceivers.

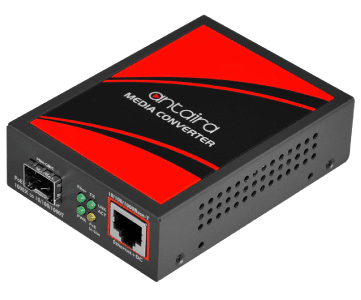

PoE Media Converters
Antaira’s Power over Ethernet (PoE) media converters combine power and data on one cable offering a copper to fibre connectivity solution while providing Power over Ethernet to PoE compliant devices such as IP cameras, VoIP phones, and wireless access points. With complete compliance with IEEE 802.3 and 802.3u Fast Ethernet standards, Antaira’s PoE media converters perform exceptionally in industrial, high-density applications. PoE fibre converters can be utilized to bridge the gap between commercial network types and even extend network connections beyond cabling standards.

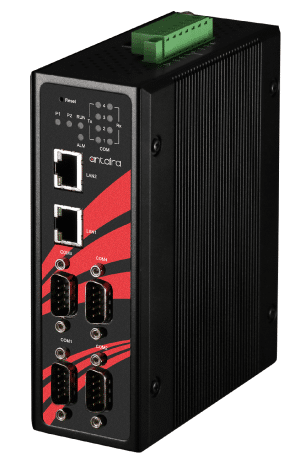

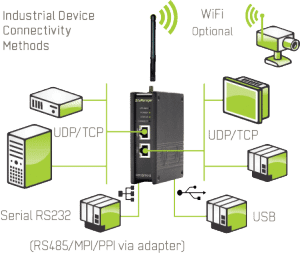

RS232/422/485 Universal Device Servers (Serial to Ethernet)
Antaira offers a full range of serial to Ethernet industrial device servers that transmit RS232, RS422, or RS485 data across an IP network that easily provide Ethernet communication capabilities to legacy serial equipment and boast high surge and isolation protection, as well as Virtual COM software for easy COM port mapping.

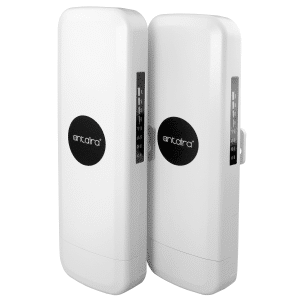

Industrial 802.11AC Wireless (Wi-Fi) LAN Bridge
Antaira Technologies’ AMY-5133-AC-PD is a simple point-to-point or point-to-multipoint IEEE 802.11 radio with a gigabit PoE wired interface. The Gigabit Ethernet IEEE 802.3af/at interface provides a means to power and deliver data making setup simple and clean. Alternatively, an external power supply may also be used to power the device, power supply sold separately.
Switches on the device make it possible to set up a bridging pair without having to access the software for simple solutions. This product is ideal for applications where a quick and simple wireless bridge is required.
- High-speed WLAN Supports Up to 867Mbps
- Supports 802.11 AC
- MIMO Wireless Solution (Dual 2Tx/2Rx)
- PD (Powered Device) IEEE 802.3af/at Compliant or external power
- Supports Ethernet Gigabit WAN/LAN Port
- Qualcomm QCA9563+QCA9886+QCA8334
- Up to 24dBm Tx Power
- Built-in 14dBi MIMO Panel Antenna
- Operating Temperature: -30°C to 45°CSwitches on the device make it possible to set up a bridging pair without having to access the software for simple solutions. This product is ideal for applications where a quick and simple wireless bridge is required.
- 2-Year Warranty
LNP-0800G-M12-67-24-T
8-Port Industrial M12 IP67 Waterproof Gigabit PoE+ Ethernet Switch, w/8*10/100/1000Tx (30W/Port) M12 Connector (X-Coded); -40° to 70°C
The LNP-0800G-M12-67-24-T Ethernet switch provides 8 Gigabit Ethernet M12 ports with all 8 IEEE 802.3at compliant PoE (Power-over-Ethernet) ports. The switches are classified as power source equipment (PSE) and provide up to 30 watts of power per port.
The LNP-0800G-M12-67-24-T features a wide operating temperature of -40° to 70°C that allows it to be used in some of the harshest industrial environments.
Moreover, its M12 connectors ensure a tight, robust connection, and guarantee reliable operation on applications that are subject to high vibration and shock.
- 8-Port 10/100/1000Tx Ethernet with IEEE 802.3at Compliant PoE+
- Redundant Power Inputs Design, 24~55VDC
- Built-in Power Booster Design for PoE/PoE+ Output
- Built-in Relay Output Warning for Power/PoE Failure
- Bypass Design for Daisy Chain Redundancy
- Support Digital Input/Digital Output
- IP67 Rugged Waterproof Metal Case Design
- M12 X-Coded Connector to Ensure Tight and Robust Connection
- Wall Mountable
- 5-Year Warranty
LMP-1802G-M12-10G-SFP-67-24-T
18-Port Industrial M12 IP67 Waterproof Gigabit PoE+ Light Layer 3 Managed Ethernet Switch, with 16*10/100/1000Tx M12 Connectors (X-Coded) (30W/Port) and 2*1G/10G SFP Slots; 24~55VDC Power Input; EOT: -40°C to 70°C
Antaira Technologies’ LMP-1802G-M12-10G-SFP-67-24 Series is an 18-port managed gigabit Ethernet switch, which provides 16*10/100/1000 Base-T(X) with IEEE 802.3 af/at PoE compliant and 2*1G/10G fibre slots. LMP-1802G-M12-10G-SFP-67-24 Series is a fully manageable light layer 3 Ethernet switch and supports power inputs redundancy. LMP-1802G-M12-10G-SFP-67-24 Series offers standardized network redundancy ITU-T G.8032 ERPS v2 (Ethernet Ring Protection Switch) protocol, providing <50 ms recovery time to the network.
LMP-1802G-M12-10G-SFP-67-24 Series provides comprehensive network security and management capability by supporting Multi-user accounts, IGMP, GVRP, VLAN, QoS, SNMP, RADIUS, TACACS+, Aggregation (Static, LACP), SSH, SSL, IP source guard to create a highly secured network environment. For power saving purposes, assuring PD, priority, and enhancing the security level of the network, LMP-1802G-M12-10G-SFP-67-24 Series also supports PoE scheduling and PoE output limit function to set up PoE output duration and watt at will.
LMP-1802G-M12-10G-SFP-67-24 Series is an M12 IP67 PoE+ industrial gigabit Ethernet switch that meets the high-reliability requirements demanded by industrial applications. Its M12 connectors ensure a tight and robust connection and it guarantees reliable operation on applications that are subject to high vibration and shock in dust, liquid, or gas-laden environments. Being able to operate under the standard temperature range from -10°C to 65°C or the extended temperature range from -40°C to 70°C, the LMP-1802G-M12-10G-SFP-67-24 Series can be installed in almost any harsh environment.
- 16-Port 10/100/1000Base-T(X) Ethernet with IEEE 802.3af/at compliant with 30W/Port
- 2-Port 1G/10G SFP Slots
- Multi-user account for security
- Bypass design for Daisy Chain Redundancy
- Configuration: http, https, CLI Command, Telnet, SNMP, SSH
- Network redundancy support: G.8032 ERPS v2 / STP / RSTP / MSTP
- Supports Static routes for routing function
- Supports RADIUS, TACACS+ authentication protocol
- Supports QoS, LACP bandwidth control
- Supports VLAN, SNMP v1/v2c/v3, ACL, IP source guard for Ethernet security
- PoE ping alarm function for PoE ports power recycle
- Redundant power input design
- Operating Temperature Range – EOT: -40°C to 70°C
- 5-Year Warranty
SEcure COMmunication made EAsy. Imagine providing secure remote services to your customers as if you were on-site. Save time, travel costs and provide instant services simultaneously. An Internet based industrial communication solution that helps you monitor, manage and service your equipment no matter where it is located – across town or around the world. Solutions that give you the ability to reduce costs, improve customer satisfaction and boost revenues by meeting the demands for increased uptime. Third generation technology enables Secomea solutions to be:

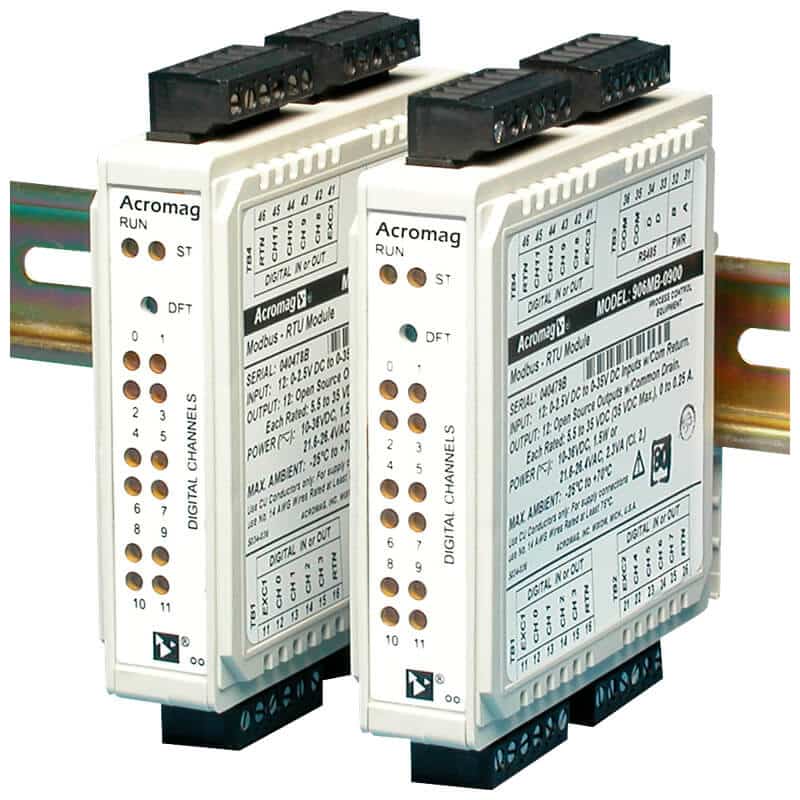

Acromag offers analog and discrete I/O modules for Ethernet, Modbus, and Profibus. Acromag remote I/O modules feature signal conditioners and network I/O for a broad range of monitoring and control operations where controllers communicate with instrumentation on the plant floor or in the field.
Signal Conditioners include signal transmitters, signal isolators, 4-20 mA signal splitters, limit alarms and computation modules. These signal conditioners input voltage, current, thermocouple, RTD, frequency, thermistor, load cell, potentiometer, and discrete sensors. These signal conditioners output DC voltage and current, relay, frequency, pulse width modulation and display/readout. Ethernet remote I/O modules communicate via Ethernet/IP, Modbus TCP/IP, Modbus UDP/IP, and Profinet.
How to Implement Smart Load Sharing with a Pump Controller
A local public utility district has a freshwater collection tank that sometimes fills rapidly and other times slowly. At times the main pump could not keep up and a backup pump must be turned on to keep up with the incoming water. The problem is that with the primary pump running most of the time, it had a higher failure rate and maintenance costs.
LUTZE SUPERFLEX ® PROFIBUS (C) PUR, Shielded
High Flexing PROFIBUS Cable for Continuous Motion Applications
- For the cabling of industrial field bus systems like PROFIBUS DP, SINEC L2, F.I.P.
- For continuous flexing applications in drag chain or free movement in automation technology, transport and conveyor technology, machine tool manufacturing
- Compatible with all major drag chain brands
- Compliant with NFPA 79 requirements
- High protection against electromagnetic interference (EMI)
- Talc and silicone free
LUTZE SUPERFLEX® DeviceNet™ BUS (C) PUR, Shielded
High Flexing DeviceNet™ Cable for Continuous Motion Applications
- For the wiring of industrial devices, sensors and control devices
- For continuous flexing applications in drag chains or free movement in automation technology, transport and conveyor technology, machine tool manufacturing
- Compatible with all major drag chain brands
- Compliant with NFPA 79 requirements
- 2-pair cable: The pair with the smaller cross section is for data transmission and the pair with the larger cross section is for the power supply
- High protection against electromagnetic interference (EMI)
- Talc and silicone free
LUTZE MOTIONFLEX ® ETHERNET (C) TPE, Shielded
Flexing Ethernet Cable for Linear and Twisting Motion Applications
- For the cabling of industrial Ethernet systems
- Cable design for harsh industrial environments and operating conditions with high noise levels.
- Automation technology, material handling, conveyor technology, and industrial machinery
- Suitable for motion applications with repetitive movement, flexing, and torsional stress
- Compliant with NFPA 79 requirements
LUTZE SUPERFLEX® ETHERNET (C) PUR, Shielded
High Flexing Ethernet Cable for Continuous Motion Applications
- For the cabling of industrial Ethernet systems
- Cable design for harsh industrial environments and operating conditions with high noise levels
- Applicable in automation technology, transport and conveyor technology, machine tool manufacturing
- For continuous flexing applications in drag chains or free movement
- Compatible with all major drag chain brands
- Compliant with NFPA 79 requirements
LUTZE DRIVEFLEX ® XLPE (C) PVC, Shielded
Flexible VFD Cable XHHW-2 for Stationary Applications
- Cable design for harsh industrial environments and operating conditions with high noise levels
- Thermoset XLPE insulation offering superior overload and short-circuit temperature
- Type XHHW-2 insulation offering smaller ODs for general VFD applications
- Compliant with NFPA 79 requirements
- TC-ER-JP for use with cable trays without conduit, which can reduce installation costs in industrial environments
- WTTC – wind turbine tray cable rating for use in wind power generation
- Dry, damp or wet conditions
- Flexible XLPE conductor design
- Reduced cable ODs
- High insulation resistance
- Low capacitance cable
- Effective dual layer shield for EMC compliance
- Oil resistant jacket designed for easy stripping
- Non-wicking fillers
- Ecolab certified resistance to common cleaning agents and chemicals used in food and beverage washdown procedures
- Crush impact resistant
- Gas/vapour-tight sheath per UL 1277
- Sunlight resistant
- Flame retardant
- Direct burial
- Talc and silicone free
LUTZE DRIVEFLEX® XLPE (C) 2 TSP PVC, Shielded
Flexible Composite VFD Cable with two Control Pairs for Stationary Applications
- Cable design for harsh industrial environments and operating conditions with high noise levels
- Thermoset XLPE insulation offering superior overload and short-circuit temperature
- Increased wall thickness insulation type RHW-2, offering lower capacitance and higher impedance making it ideal for applications with high voltage spikes and long cable runs
- Compliant with NFPA 79 requirements
- TC-ER-JP for use with cable trays without conduit, which can reduce installation costs in industrial environments
- WTTC – wind turbine tray cable rating for use in wind power generation
- Dry, damp or wet conditions
- Flexible XLPE conductor design
- High insulation resistance
- Low capacitance cable
- Effective dual layer shield for EMC compliance
- Oil resistant jacket designed for easy stripping
- Non-wicking fillers
- Ecolab certified resistance to common cleaning agents and chemicals used in food and beverage washdown procedures
- Crush impact resistant
- Gas/vapour-tight sheath per UL 1277
- Sunlight resistant
- Flame retardant
- Direct burial
- Talc and silicone free
