SATELLITE COMMUNICATION SYSTEM

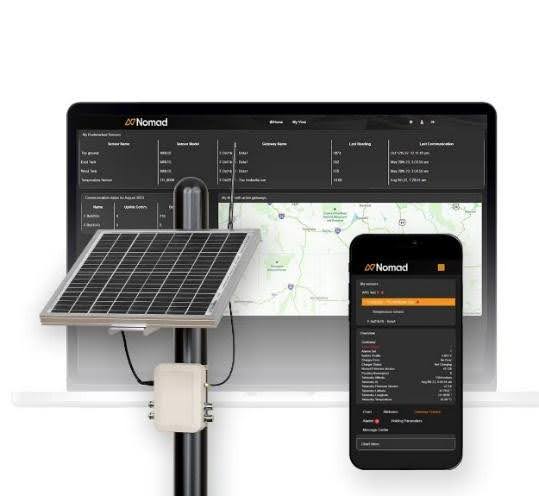

The Nomad Explorer is a cutting-edge, solar-powered device designed to provide reliable and efficient remote monitoring for Modbus sensors in even the most challenging environments. With an emphasis on sustainability, autonomy, and robust communication, The Nomad ensures your critical data is accessible and actionable, regardless of location.

Built to seamlessly interface with Modbus sensors, providing real-time access to their data and enabling you to make informed decisions based on accurate information. Benefit from highly accurate GPS tracking, allowing you to pinpoint the location of your device with exceptional precision. Stay informed with real-time alerts sent via email or text, enabling swift actions when critical thresholds are crossed.

INTUITIVE WEB INTERFACE

The online monitoring portal, Nomad Explorer, is a powerful tool for remotely monitoring levels no matter the distance. The site offers data logging, email and text (SMS) alarms, and more, all in an intuitive, easy-to-use package.

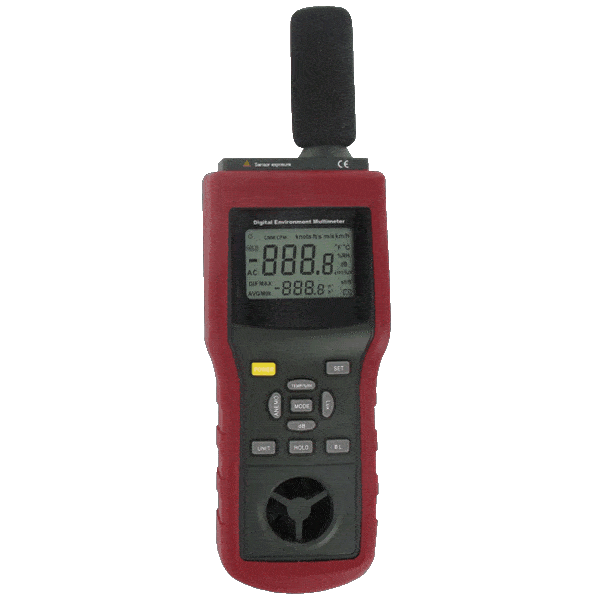

Model EMMA Digital Multifunction Environmental Sound and Light

Monitoring the environmental conditions is more convenient with the Model EMMA multifunction meter. Humidity, temperature, air velocity, airflow, sound and light measurements are combined in one easy-to-use instrument. The large, dual-line 4-digit LCD display shows both the current and average reading. For reading measurements in dimly lit areas, the display has a built-in backlight. Besides measuring the current and average reading, the Model EMMA allows the user to read the minimum, maximum and differential measurements for each of the parameters. Included with the meter are the carrying case, rubber boot, battery and tripod.

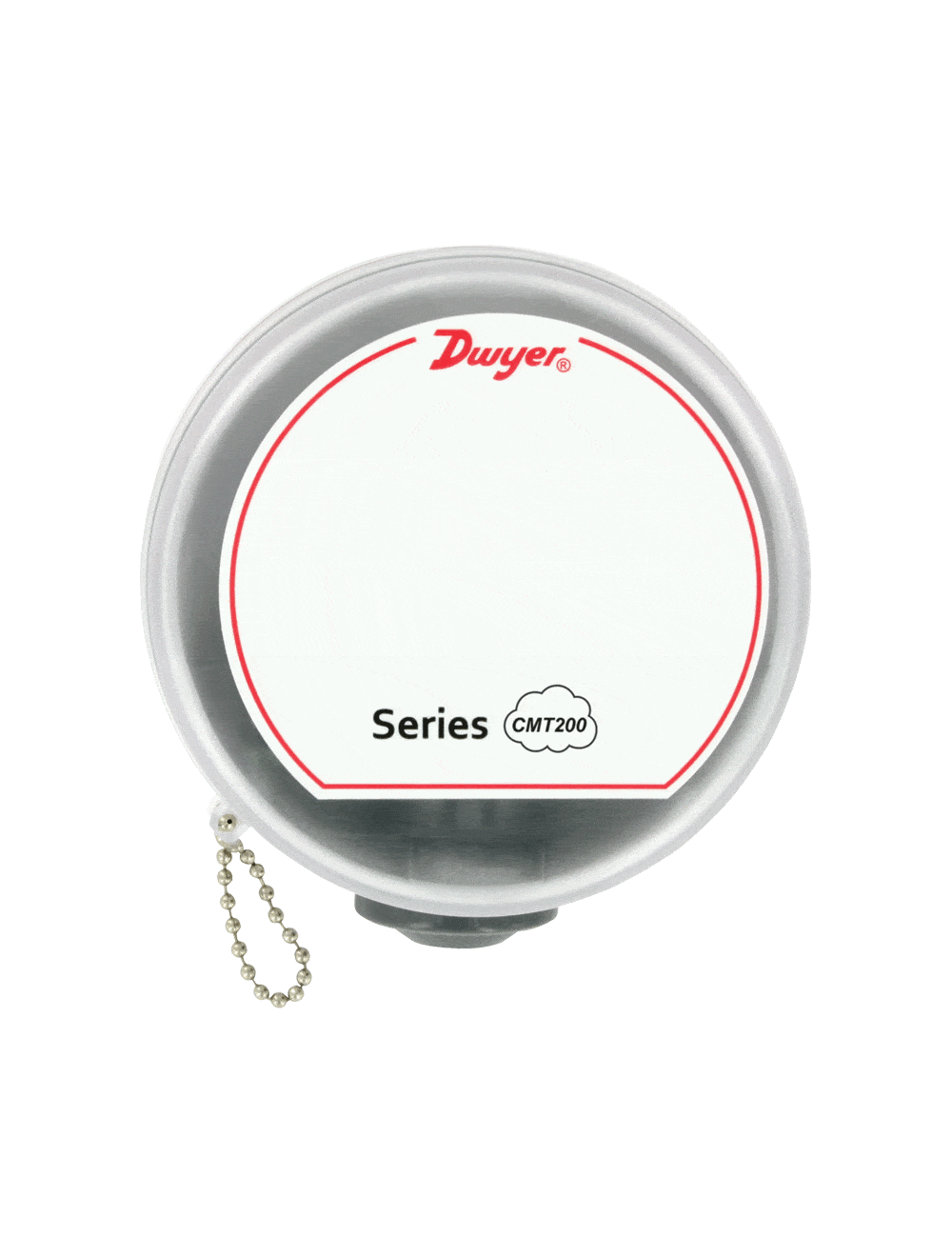

CMT200 Carbon Monoxide Transmitter

Current/Voltage Selectable Output, 200 PPM Range

The Series CMT200 Carbon Monoxide Transmitter provides a field selectable current or voltage output that is proportional to the gas concentration in underground parking garages, vehicle maintenance facilities, or mechanical rooms. A field replaceable, electrochemical sensor provides accurate readings for up to 4 years with proper calibration. Field calibration can be done by using Model GCK-200CO-2000CO2 calibration gas, Model A-507A calibration adapter, and the onboard span and zero potentiometers.

Product Applications

  • Garage ventilation
  • Mechanical room monitoring

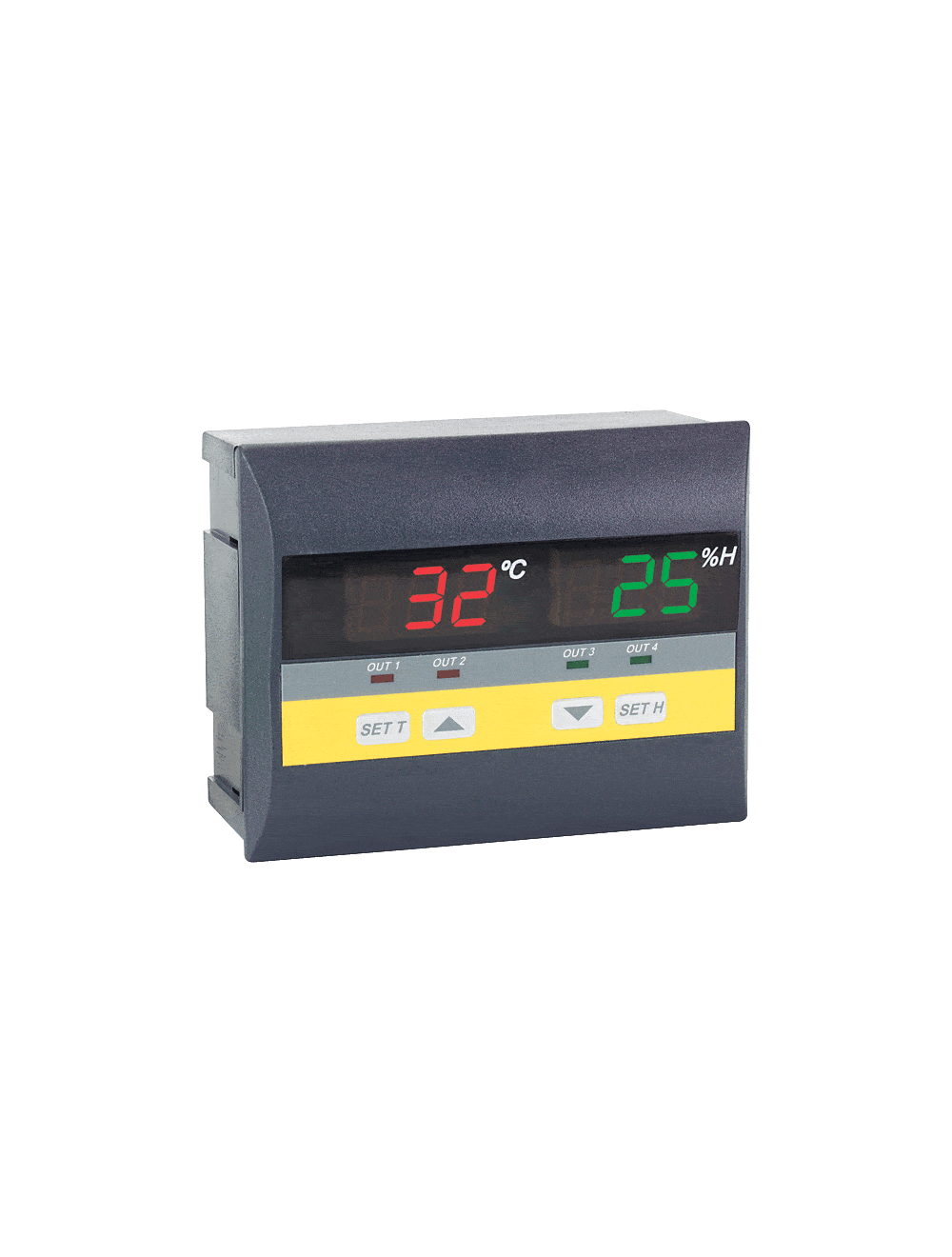

Series THC Temperature/Humidity Switch

Independent Displays, 61 Programmable Parameters, 4 SPST Relays

The Series THC Temperature/Humidity Switch simultaneously measures and controls temperature and humidity. The unit offers a 3-digit red display for temperature indication and a 3-digit green display indicating humidity. The Series THC is equipped with four independent relays, two for temperature control and two relays for humidity control.

The THC Temperature/Humidity Switch accepts up to two temperature probe inputs (sold separately) and a humidity sensor. A humidity sensor with 0-1 V, 3 V (THC-P sold separately), or 4-20 mA output can be used with the Series THC.

Learn More About Dwyer

Product Applications

  • Isolation chambers
  • Environmental chambers
  • Greenhouses
  • Beer and wine chillers

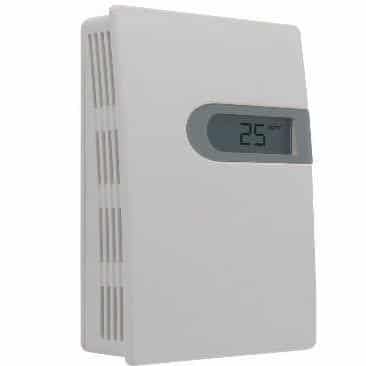

SERIES PMI PARTICULATE MATTER TRANSMITTER

PM 2.5/10 Transmitter/Controller

The Series PMI Particulate Matter Transmitter is designed to measure indoor air quality by detecting particulate matter in an office environment or HVAC duct. Using laser scattering technology, the Series PMI can measure particles as small as 0.3 µm, making it an essential component of any indoor air quality monitoring system. The optional relay combined with the settable alarm and control parameters allows the Series PMI to be a stand-alone controller.

  • Educational institutions
  • Healthcare facilities
  • Corporate offices
  • Hotels/restaurants
  • Air purifiers

KATflow 210 Integrated Clamp-On Ultrasonic Flowmeter

The KATflow 210 is a portable flowmeter designed for situations that require a reliable flow measurement regardless of the conditions in which it operates. With its advanced battery technology and durable waterproof housing, the instrument is intended for long-term installation in remote areas where access to power is limited and exposure to the worst of elements is likely. This device has been further enhanced by the inclusion of a specially manufactured IP 68 version of the K1N stainless steel transducers which increases shock protection. Applicable for leakage surveys, metering in pits or wet wells where flooding is likely and irrigation systems, this is the most robust portable meter manufactured.

Measurable pipe sizes are 1 to 100 inches and temperatures are from -30 to 130°C. The choice of 4-20 mA, relay and open-collector outputs available on the KATflow 210 allow it to be used as a temporary replacement for existing inline flowmeters when calibration is due. Available with Modbus communications, this unit allows for simple integration to external wireless communications.

  • Three different measurement modes to maximize battery life
  • IP 68 stainless steel sensors, cable and connectors as standard
  • Integrated pipe wall thickness gauge available
  • Optional wireless data transmission
  • Standard operation up to 100 days, longer in power-saving modes

Learn More About Katronic

Compressed Air Microbial Detection

Compressed air is used in a broad range of applications in the food processing industry, such as mixing of ingredients, cutting, sparging, drying of products, transporting and propelling products through processing systems, and packaging the final product. In many of these applications, compressed air is in direct contact or indirect contact with food products. The impurities in the compressed air may contaminate the food product which can result in a change of colour and taste, reduced shelf life, in addition to exposure to bacteria and other micro-organisms, can result in product recalls.

Parker’s Compressed Air Microbial Test Unit (CAMTU) detection device allows food safety personnel to quickly and easily test for contamination present in compressed air supplies that come in direct contact with food products or food packaging/processing equipment. The CAMTU is portable, weighing less than one pound, and is supplied with connection tubing, a shut-off valve, a pressure regulator, and a metering orifice.
