Pressure Control equipment refers to a range of devices and systems used to regulate and maintain optimal pressure levels in industrial processes. These sensors include Pressure and Vacuum switches, gauges, transducers, transmitters, and pressure differential devices. These devices play a critical role in ensuring the safety, efficiency and performance of operations in all industrial sectors.
Davis Controls supplies the following brands of Flow Control solutions.
Explore our solutions by clicking on the brand below:
Pressure Sensors & Transducers
Setra Systems designs and manufactures premium pressure sensors. For over 50 years, Setra has developed a unique understanding of pressure sensing technology and their team of engineers designs some of the most robust, accurate, and reliable capacitive sensing transducers available.
- Differential Pressure Sensors: Setra’s differential pressure sensors are known for their quality and reliability. Designed with premium capacitive sensing technology, Setra offers single-range and multi-range (field selectable) pressure sensors. Capable of measuring both liquid and gases, Setra has the product to meet a breadth of HVAC applications and can be trusted in your most critical applications.
- Absolute Pressure Sensors: Absolute pressure is measured relative to a full vacuum. In contrast, pressure that is measured against atmospheric pressure (also known as barometric pressure) is called gauge pressure. A full vacuum has an absolute pressure reading of 0 PSIA and the average barometric pressure at sea level is ~14.7 PSIA
- Gauge Pressure Sensors
- Ultra High Purity (UHP) Pressure Transducers
- Barometric Pressure Sensors: are designed to measure changes in atmospheric pressure. Setra’s line of barometric pressure transducers are trusted in some of the most demanding applications including weather stations, data buoys, aircraft altimeter re-certification, and wind assessment and high-altitude research balloons. When accuracy and stability matter, choose the barometric pressure transducers trusted by multiple Government organizations including the FAA and NOAA.
- Compound Pressure Transducers: allows users to measure both negative and positive pressure. Compound pressure transducers are zeroed to atmospheric pressure. Applications for compound pressure transducers include HVAC/R equipment, industrial compressors, and water pumps. Setra Systems offers a full line of rugged, reliable, and accurate compound pressure sensors.
JUMO is one of the leading manufacturers in the field of industrial sensors and automation technology. This innovative product range includes the entire measuring chain from sensors to automation solutions for temperature, pressure, liquid analysis, flow rate, filling level, and humidity.
The pressure transmitter with a silicon sensor is used to detect the relative pressure (0 to 0.25 bar – 0 to 25 bar) in liquid and gaseous media. The pressure transmitter measures the pressure and converts it into an electrical signal with a deviation from the characteristic line of ≤ 0.5% from the end value. A two-wire current signal, three-wire voltage signal, or a ratiometric output signal can be selected for the electrical signal output. These should be supplied with the appropriate direct voltage (nominal DC 24 V).
Made in Canada – Winters Instruments manufactures quality-built instrumentation for all markets that require pressure and temperature measurement including pressure gauges, thermometers, diaphragm seals, transmitters, switches and accessories.
WINSMART™ Pressure Transmitter
- Explosion proof smart pressure transmitter for hazardous locations
- Built-in temperature sensor
- 0.2% standard; 0.5%, 0.1%, 0.075% or 0.05% optional
- Simple to operate 3-push button control
- HART or Modbus communications available
- Low power option available
- Re-zero function for safe field calibration
- Wide range of accuracies and turndown ratios allow for installation in any application setting
- CRN Pending
- 5-year warranty
Applications: Pressure monitoring for oil and gas, well head process control, petrochemical installations, power generation equipment and all hazardous locations
Manifold Valves
2, 3, and 5 valve manifolds incorporate high quality needle valves designed to operate at pressures up to 6000 psig with standard PTFE gland packing.
The flanged inlet allows a futbol type adaptor to connect the inlets to the manifold with ½” tube fittings or pipe. Instrument manifolds available with 3 & 5 valve design.
- 316L stainless steel body, stem and trim
- 6000 psig @ 1000°F (414 bar @ 380°C)
- Non-rotating trim provides bubble tight shut-off
- Flange o-rings and mounting bolts included with manifold
- PTFE Packing, with optional grafoil packing available
CRN’s available upon request

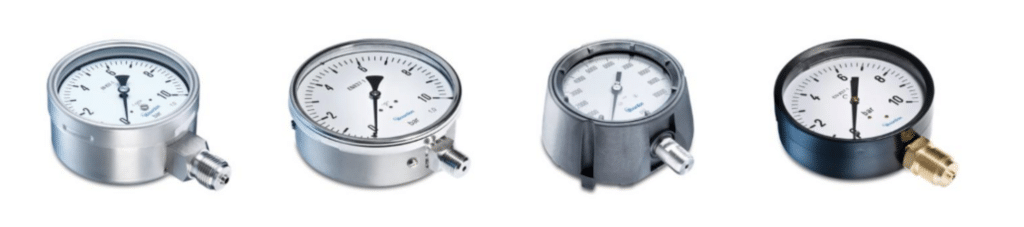

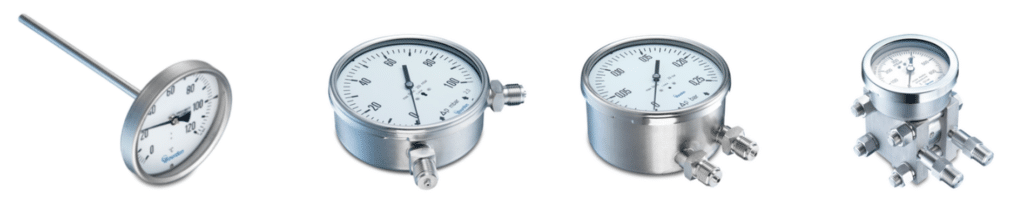

Bourdon is one of the world’s leading brands for mechanical process instrumentation. Products employ the Bourdon tube, invented in 1843 by Eugène Bourdon, which is the central component for precise mechanical pressure measurement technology.
Bourdon tubes are the most commonly used elastic elements in mechanical pressure gauges today, remaining popular due to their great simplicity.
The simplicity of Bourdon gauges makes them easy to operate and maintain in proper working condition. They also function across a broad pressure range and offer a high degree of accuracy (up to 0.1% full scale deflection).
Since they do not require an external power source, they are not susceptible to voltage fluctuation and power outages.

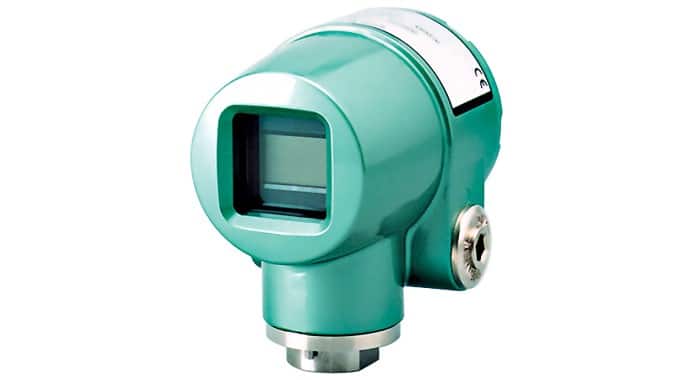

Smart Gauge Pressure Transmitter Model: PTG71/PTG72
Azbil provides various types of pressure transmitters developed using technologies based on a long-developed performance record.
Azbil Model PTG71/PTG72 Smart Pressure Transmitter is a high-performance, highly reliable gauge pressure transmitter. Based on Azbil Corporation’s proven Smart Transmitter technologies, the transmitter offers improved performance and reliability with size, weight, and cost advantages. An optional built-in digital indicator allows the pressure transmitter to be used in a wide variety of applications.
The Model PTG71/PTG72 Smart Pressure Transmitter can also execute two-way communications between model SFC (Smart Field Communicator), or HART® communicators, and, via DE protocol, a TDC3000 or 3000X and a database, thus facilitating self-diagnosis, range resetting, and automatic zero adjustment operations. Any range can be set using the Smart communicator or the HART communicator option. These further increase range flexibility and keeps inventory down. CE Marked. Water and dustproof for IEC IP67, TIIS Explosion-proof, FM Explosion-proof, FM Dust-ignition-proof, KCs Flame-proof, NEPSI Flame-proof, and NEPSI Dust ignition-proof models available.
