A Temperature Controller can control or maintain temperature without human observation. In a control system comprised of a thermocouple, a controller is given input, the input is compared to a desired temperature, then the output is generated by a control component. The temperature controller continuously checks the temperature and adjusts it to the ideal temperature. Temperature gauges, switches and controllers are used in multiple industries, including the production and packaging of plastics, production control of food and beverages and heat treating.
Davis Controls supplies the following brands of Temperature and Humidity Control solutions.
Explore our solutions by clicking on the brand below:
JUMO is one of the leading manufacturers in the field of industrial sensors and automation technology. This innovative product range includes the entire measuring chain from sensors to automation solutions for temperature, pressure, liquid analysis, flow rate, filling level, and humidity.
JUMO manufactures durable, high-quality, precision RTD temperature probes and thermocouples. An extensive product range provides customizable solutions for a variety of industries, from OEM applications to highly specialized industry projects.
Temperature Transmitter
- High degree of basic accuracy of up to 0.05% for all selected temperature measuring ranges
- Rapid startup, up to 1,000 measuring ranges can be set via DIP switches
- High interference immunity according to NAMUR NE21
- Large ambient temperature range of -25°C to +70°C
- Close Mounting
- Low temperature coefficient with errors <0.01%/°C

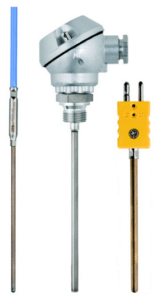

Mineral-insulated Thermocouples
Mineral-insulated thermocouples are made of a flexible, thin-walled sheath cable in which the thermocouple wires are embedded in compressed fire-resistant magnesium oxide. The good thermal transfer between the sheath and the thermocouple enables short response times and high measuring accuracy.
- For temperatures between -200 to +1200°C
- Flexible sheath cable with vibration-resistant measuring insert
- Protection tube diameter of 0.5 mm
- Application-specific insertion length
Due to their specific features, mineral-insulated thermocouples are used in chemical plants, power plants, pipelines, engine building, and test rigs. Inside the flexible and thin-walled sheathed cable, the thermo-wires are embedded in compressed and fire-resistant magnesium oxide.
The vibration-resistant construction guarantees a long operating life. The smallest bending radius is 5 times the outer diameter. With a diameter of 0.5 to 2.0 mm, the minimum insertion length (EL) is ≥ 50 mm; with a diameter of 3.0 to 6.0 mm, the EL is ≥ 100 mm.
The thermocouples are designed to be insulated from the sheath as standard. The measuring insert is equipped with thermocouples (elements) according to DIN EN 60584 and/or DIN 43710. Versions with two thermocouples are also possible.
West Control Solutions is part of Gems Sensors & Controls and is home to PMA, West Instruments and CAL Controls.
Partlow Electronic products – together with the CAL, PMA and West product brands forms West Control Solutions. CAL Controls as a leader in the Life Sciences and Laboratory market segments.
From simple, entry-level temperature controllers to highly sophisticated, functionality rich solutions, West Control Solutions offers a variety of easy-to-use products to meet demands of all control applications. Our comprehensive product portfolio includes single and multi-loop controllers, limit devices, indicators and transmitters along with recorders and tools for data acquisition.
Partlow Electronic Products specializes in a range of DIN temperature and process controllers which offer PID control. The range also includes a number of limit controllers. In addition to instruments for temperature control, Partlow provides a comprehensive selection of line chart, point chart, circular chart and paperless recorders. The recorders offer flexible charts from basic through to advanced recorders that include programming functionality for up to four loops and up to 16 profiles. The chart sizes from 10″ to 12″ diameter.

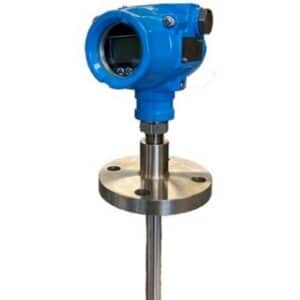

Winters Instruments – The TY52 Smart Explosion Proof Temperature transmitter can be utilized and installed anywhere where temperature measurement is required. From Oil & Gas installations to Power Generation, this product has a rugged design and is equipped with the communication protocols to meet all requirements.
TEMPERATURE TRANSMITTER WINSMART™ TY52 SMART EXPLOSION PROOF
Industrial Thermometers
This extensive product range includes industrial and dial thermometers
(and matching thermowells) as well as high-quality manometers, and
an extensive range of force sensors and load cells.
DANFOSS THERMOSTATIC VALVES
Danfoss thermostatically operated valves are a simple and reliable control solution requiring neither electricity nor control air. The range of thermostatic valves includes a series of industrial products for both cooling and heating controls. The valves are self-acting, i.e. they operate without the supply of auxiliary energy such as electricity or compressed air. Danfoss thermostatic valves are a simple and reliable way to control the temperature in cooling applications. They are typically used in:
- Hydraulic systems
- Biomass boilers
- Injection moulding machines
- Compressors
- Vacuum pumps
- Dry-cleaning machines
- Distillation plants
- Other machinery using liquid cooling
- Steam boiler applications
- Autoclaves
HUMIDITY
Humidity plays a crucial role in many industries. JUMO offers reliable measurement systems including hygro thermometers and hygrostats with either capacitive or hygrometric measurement methods to help monitor and achieve optimal humidity.
The Series RHP Temperature and Humidity Transmitter output with a passive temperature thermistor or RTD output. Featuring polymer capacitance humidity sensors, models are available in 2%, 3% or 5% accuracies. Duct mounted transmitters are available with an optional two-line alpha numeric LCD display.
LOVE controllers are part of the DwyerOmega family of brands. Other DwyerOmega brands include Omega Engineering, known for Temperature Measurement Solutions, Control and Monitoring Solutions, Data Acquisition Solutions, Force & Strain Measurement Solutions, Level Measurement, Flow Instruments, and IIoT Solutions.
Universal Input, Dual Output, On/Off PID or FUZZY Logic Output Control
The Series 16G, 8G, and 4G Temperature/Process Loop Controllers allow for monitoring and control of temperature or process conditions. The controller features two independent control outputs for dual loop control using on/off, auto-tune or self-tune PID, fuzzy logic, or manual control methods. RS-485 interface is included with Modbus® communication protocol, for easy bench-top configuration or integration with a PLC or data controls.
